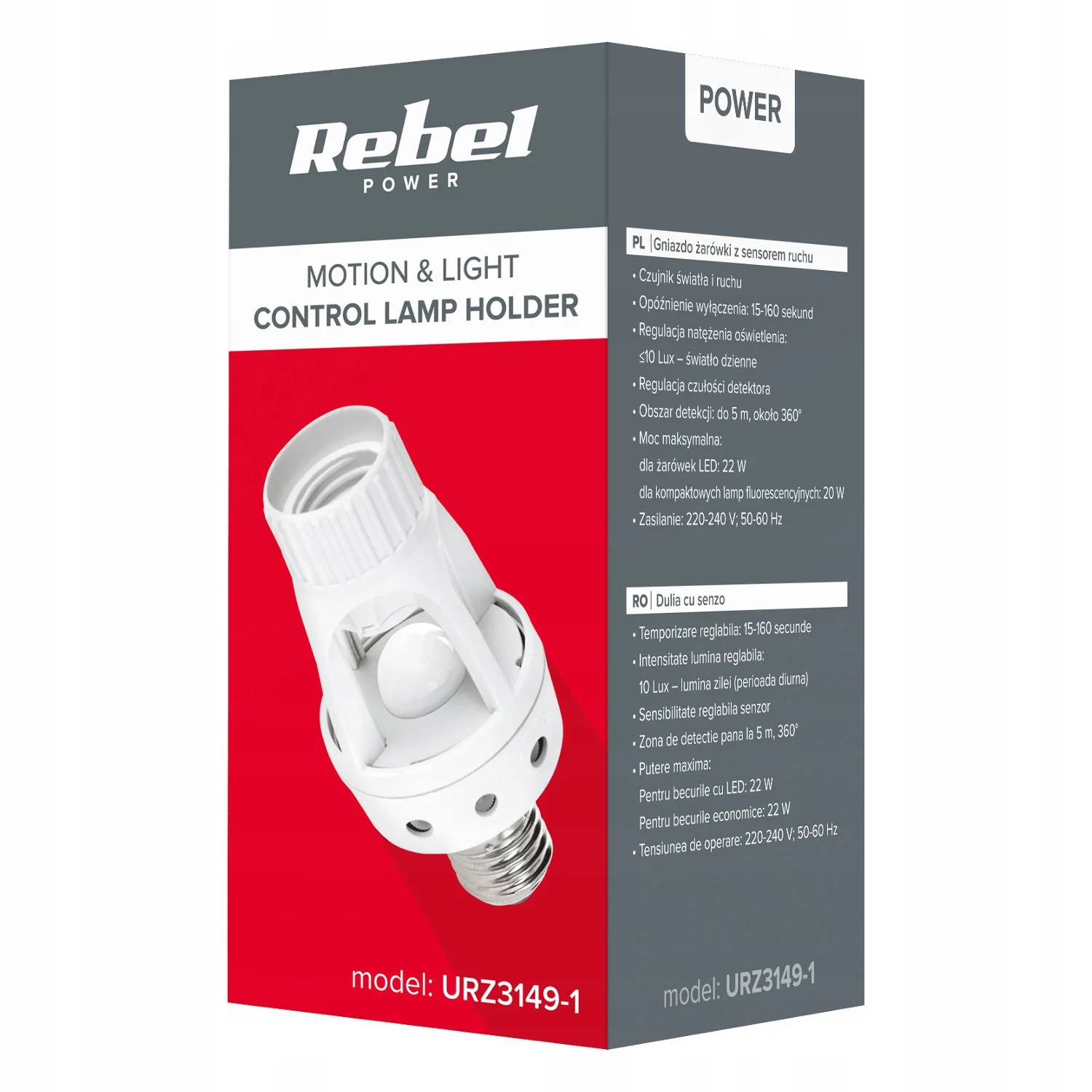

E27 socket for light bulb with 360 motion sensor

E27 socket for light bulb with 360 motion sensor

Turn your regular lamp into a smart sensor light with the E27 socket with 360° motion sensor! This innovative socket allows the light to automatically turn on and off based on detected movement, saving energy and increasing the security of your home.

It is suitable for indoor spaces such as hallways, garages, basements, staircases, as well as covered outdoor spaces. The sensor detects movement in all directions (360°) and turns on the light only when needed.

The Rebel motion sensor light base is a high-quality device that will help you automatically control your light source. It will work great in long hallways and other passageways. The product is equipped with an E27 fitting and operates at a load of 60W for a built-in incandescent bulb or 20W for energy-saving bulbs.

The device uses a maximum viewing angle of 360° to detect movement within a range of 5 m. The light intensity and the exposure time (from 5 to 100 seconds) after motion is detected can be adjusted arbitrarily using a special button. The Rebel URZ3149-1 lamp socket meets the quality and safety standards regulated by international directives.

Infrared sensor
Light intensity sensor
Setting the time for the bulb to turn on after motion is detected (min. 5 s, max. 100 s)
Detection range: 5 m, 360°
Operating voltage: 230 V / 50 Hz
Maximum power: for incandescent bulbs – 60 W; for energy-saving bulbs – 20 W Button
for adjusting the light intensity sensitivity
Vertical installation

Brand and responsible person for the EU:

rebel-tools

Instructions for use

Instructions for use of the product:

1. Installation:

1. Turn off the electricity. on the switch panel to ensure safe installation.
2. Screw the socket into the throat E27 into existing lamp housing.
3. Screw E27 LED or classic bulb into a smart throat.
4. Adjust the exposure time as needed (if the model has this option).
5. Turn the electricity back on and check operation.

2. Adjustment:

• Exposure time: When motion is detected, the light will remain on for a certain time (10s–5 min).
• Sensor sensitivity: Some models allow you to adjust the detection distance.

Useful tips

Useful tips for assembly:

💡 Ideal for security – install it in an entryway, garage or stairwell for automatic lighting.
💡 Energy saving – by automatically turning off the light, you reduce electricity consumption.
💡 Compatibility with LED bulbs – use energy-saving LED bulbs for even greater savings.
💡 Correct installation – ensure the sensor is facing the motion area for optimal performance.
💡 Use in covered outdoor areas – an excellent solution for terraces and entrances.

Warnings

Warnings:

⚠️ Do not use outdoors unless protected from the weather.
⚠️ The maximum load is 60W - do not use more powerful bulbs.
⚠️ The sensor will not function properly if it is covered or installed in a closed light fixture.
⚠️ Always turn off the power supply before installation.
⚠️ It only works on standard 220-240V electrical networks.
